Prezentare specificatii ZINO MINI PRO – video

cmos

1/1.3 COMS 48M

1080 FPS

1080P 30fps Video Transmission

weight

Weight 249g

max

Max flight time 40 minutes

range

10 km range

direction

3 direction obstacle avoidance

Night Mode

A deep algorithm of image
denoising optimizes your low-light shots

Imaging Quality

ZINO MINI PRO

With a 1/1.3 inch CMOS sensor support smooth 4k/30fps video H.265/HEVC 200Mbps and 48M photos, build-in eMMC(64G/128G) enable you to share your video to media easily

Descriere Zino Mini Pro

HDR

Descriere-Zino-Mini-Pro--(5)---Copy

Capture higher dynamic range and colors optimizing your low-light shots

Three direction obstacle avoidance

The world’s first drone with vision obstacle avoidance under 250g
with advance 3D space perceptions algorithms enable the camera
to capture more then 600k space feature points with depth
extraction and calculation reaching 15 meters of cognitive distance.

Optical-flow night light

Optical-flow night light ensures your hovering performance in low-light circumstances

AI tracking Mode

ZINO MINI PRO applying our newest AI tracking algorithms (ATVT 3.0) with a huge improvement in tracking latency and tracking accuracy can locate the figure and animals or moving vehicles easily ad automatically

Intelligent Batteries

Buit-in intelligent battery management unit with capacity accuracy statistical and on-off control algorithms ensures your flight is safe.

Flight Time

Max Flight Time 40 mins
(measured while flying at 6 m/s in windless conditions)
Max Flight Time 37 mins hovering time in windless enviroment

Video Transmission

ZINO MINI PRO
10KM 1080P/30fps 20Mbps

ZINO MINI PRO

Hubsan Syncleas.3.0
1080P/30fps 20Mbps 10 KM

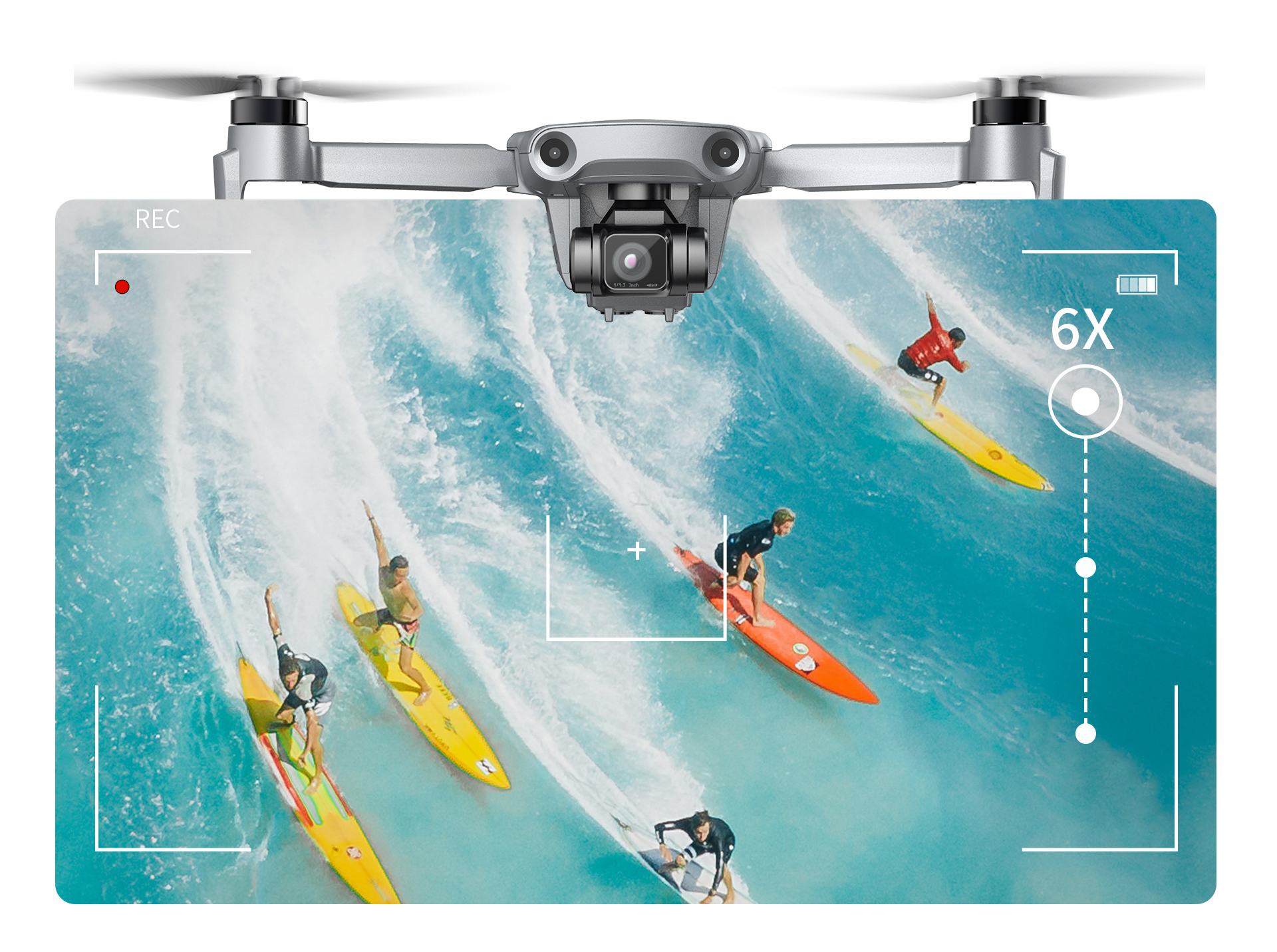

ZINO MINI PRO

6X hybrid zoom

Portable & Legal

With only 249g no resgistration required

Build-in eMMC(64G/128G)

ZINO MINI PRO
Build-in eMMC(64G/128G) enable you to share your video to media easily

Aircraft Zino Mini Pro
Size  Expand: 202.54*161.2*61.6 mm

Folding: 137*88*61.6mm

Folding (including blades): 137*94*61.6mm

Diagonal Wheelbase 220mml
Maximum current 16A
Take off weight 249 grams (Europe, America, China)

200 grams (Japan)

Hover Accuracy Vertical: ± 0.1m (when the visual positioning is working normally)

              ± 0.5m (when GPS is working normally)

Level: ± 0.3m (when the visual positioning is working normally)

          ± 1.5m (when GPS is working normally)

Maximum ascending velocity 3 m/s (N) 4 m/s (S) 2 m/s (F)
Maximum descending velocity 3 m/s (N) 3.5 m/s (S) 1.5 m/s (F)
Maximum horizontal flight speed 10m/s (N, No wind at sea level)

16m/s (S, No wind at sea level)

Maximum take-off altitude 4000 meters
Maximum anti-wind capability Grade 5 wind (8.5~10.5m/s)
Maximum tilt angle: 40° 25° (N) 15° (F)
Satellite navigation system GPS/GLONASS
Duration of flight 40 Minutes (Measured under normal temperature and no wind conditions, at a flight speed of 25km/h)
POWER SYSTEM
Motor Outward Rotation Brushless Motor

1503, KV2820

ESC Digital ESC Brushless 20A x 4
BATTERY
Battery 2400 mAh Lithium-ion battery (LiPo)
Nominal voltage 3.6×2=7.2V
Charging voltage limitation 8.4V
Discharge limitation 8C
Charging time 90 minutes
Battery Weight 101.84g
Working temperature 0°C~ 50°C
Charging environment temperature 0°C~ 40°C
Smart battery balance Support
Voltameter management Support
Automatic discharge protection Support
CAMERA
CMOS image sensor 1/1.3 inch CMOS sensor

2.4um mixed large pixel

48 million effective pixels

Lens specification  FOV 84°

Aperture f/1.85

EFL: 6.8mm

Focus point 0.5m to infinity

Distortion: <1.5%

Maximum photo size 8000 x 6000
Maximum video encoding capacity 4K: 3840 x 2160 @ 30fps

2.7K: 2720 x 1530 @ 30/60fps

FHD: 1920 x 1080 @ 30/60fps

Shutter speed 3-1/8000s
Video bitrate 100Mbps-200Mbps
Photo format JPEG
Video format MP4 (H.265/HEVC)
Firmware upgrade APP online upgrade
Support memory type card built-in eMMC 64G/128G
Wireless Transmission System
Syncleas 3.0

1080P/30fps

Max Operating Distance FCC: 10km

CM: 6KM; SRRC: 6km

Average bitrate 200Mbps
Transmission delay Within 200ms
Gymbal
Gimbal model HY817D
Number of Axes 3 (Pitch, Roll, Yaw)
Angular Speed 120°/s
Control Range: Pitch -120° to 45°

Roll: ± 35°

Yaw: ± 35°

Flight Controller
FC Version Self-developed Third-generation Flight Controller
Basic Flight Mode Sports Mode / Normal Mode / Movie Mode
Altitude Hold Mode Tof, Barometer
Fixed-point Visual Optical Flow, GPS
Unlock/Lock Outer “Eight” Unlock/Lock
One Key Take-off/Landing APP Supported,Remote Control Unsupported
Headless Mode Support
Out of Control Protection Support
Low Battery Return Support
Home Visual Recognition

(search for drone apron)

Support
Visual Tracking Third-generation Tracking Technology (ATVT 3.0)
Waypoint Flight Support
Flying Around Support
Ray Flight Support
Time-lapse Photography TBD
Motor Stall Protection Support
Firmware Upgrade APP Online Upgrade
Perception
Forward Binocular Visual Perception,Precision Measurement Distance <12M

Fluctuate <0.5M, Perception Distance >15M

Backward Binocular Visual Perception,Precision Measurement Distance <12M

Fluctuate <0.5M, Perception Distance >15M

Downward Monocular Optical Flow, Tof Ranging

Effective Ranging Range 0.3-5M,Fluctuate <0.1M

Remote Controller
Color Gray
Display LED display
Working temperature -10° to -60°C
Effective Range FCC: 10km

CM: 6KM; SRRC: 6km

Built-In Battery 3350 mAh Li-Po
Buzzer Support
Supportable mobile system Android, iOS
Continuous working time 2.5h (Normal Flight Time)
Connectivity Lightning,Micro-USB, USB-USB Type-C
APP
APP X-Hubsan2
Mobile device requirements

IOS 10.0 or higher

Android 6.0 or higher
